• Total ammount =  $26.72

•                           =  Rs1600.02





1. Open the aluminium body

2. Take the Reciever and fit it to the plate using a screw driver.

3. Take the battery holder. Put in six batteries into it.

4.Connect one end of the battery holder wire to the switch port 1.

5. Connect a wire to VCD port in the reciever. And connect that wire to the switch port 2.

6. Connect the other end of the battery holder wire to GND port in the transmitter.

7. Fix the battery holder to the plate usinbg a screw driver.

8.Screw in 8 motors with the gears to the 4 sides of the platform.

9.Connect V- of the reciever to motor 1 (the up side)

10.Connect V+ of the reciever to motor 2 (the down side)

11.Connect a wire to the up side of motor two.

12.Connect the other end of the wire to the down side of motor 1.

13.Connect a wire to motor 1 up side and motor 2 down side

14. Connect the other end of the wire of motor 1 to motor 3 down side.

15.Connect the other end of the wire of motor 2 to motor 4 up side.

16.connect a wire to motor 3 up side and connect the other end to motor 4 down side.

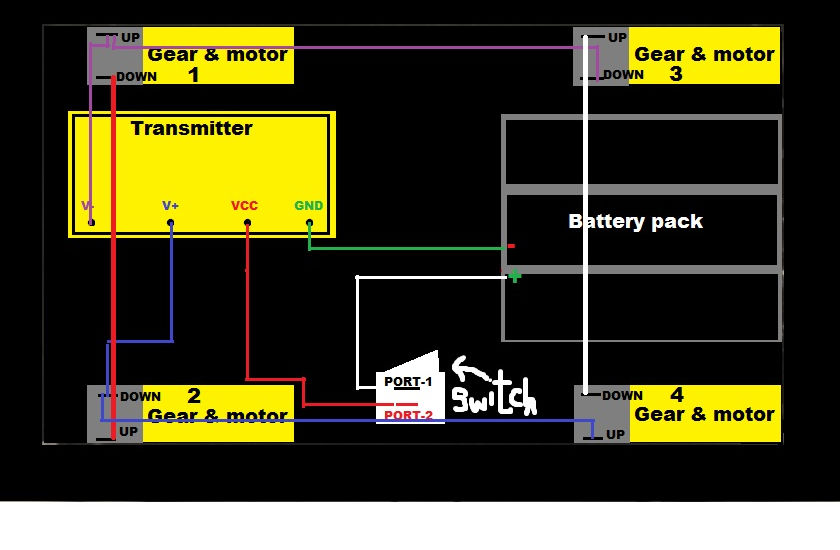

SEE THE DIAGRAM FOR MORE CLEAR INFO ON HOW TO BUILD THIS THING. WORDS CAN BE COMPLICATED.





Transmitter

1.Take a battery holder which holds 2 batteries.

2. connect one end of the battery holder wire to a switch port 1.

3. connect a wire to VCD of transmitter and connect the other end to Switch port 2.

4.Connect the other end of the battery holder wire to GND port of the transmitter.

5. Fix two batteries to the battery holder.



Finish

1. Put the switch on in the transmitter plate

2. put the switch on in the reciever plate

3. Press the button in the transmitter.

4. The car moves.
